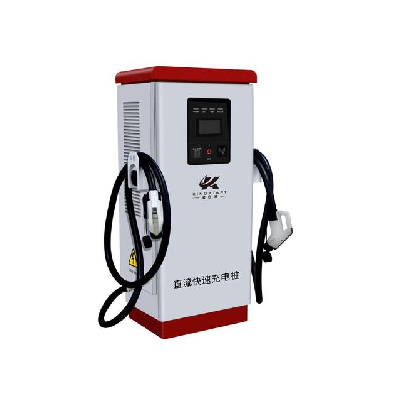

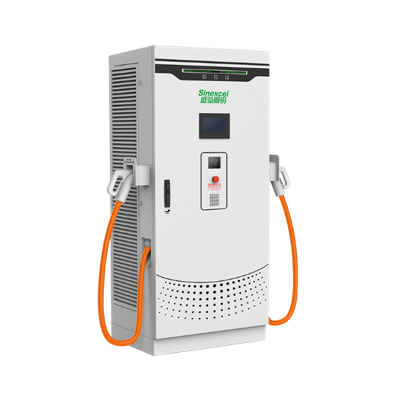

Dc charging pile is commonly known as "fast charging pile", which needs to be connected with AC power grid and can provide DC power supply device for non-on-board electric vehicle power battery. Because the DC charging pile adopts three-phase four-wire power supply, it can provide enough power, and the output voltage and current adjustment range is large, and the requirements of fast charge can be realized.
